Rock 700 PTO Driven Saw Bench – Heavy-Duty Agricultural Timber Processing

The Rock 700 PTO Driven Saw Bench is an industrial-grade timber processing tool designed specifically for farmers, estate managers, and forestry professionals. Utilizing the Power Take-Off (PTO) from a tractor via a 3-point linkage, this saw bench eliminates the need for independent engines or electricity, harnessing the massive torque of your tractor to slice through large volumes of logs with ease.

Key Features & Benefits

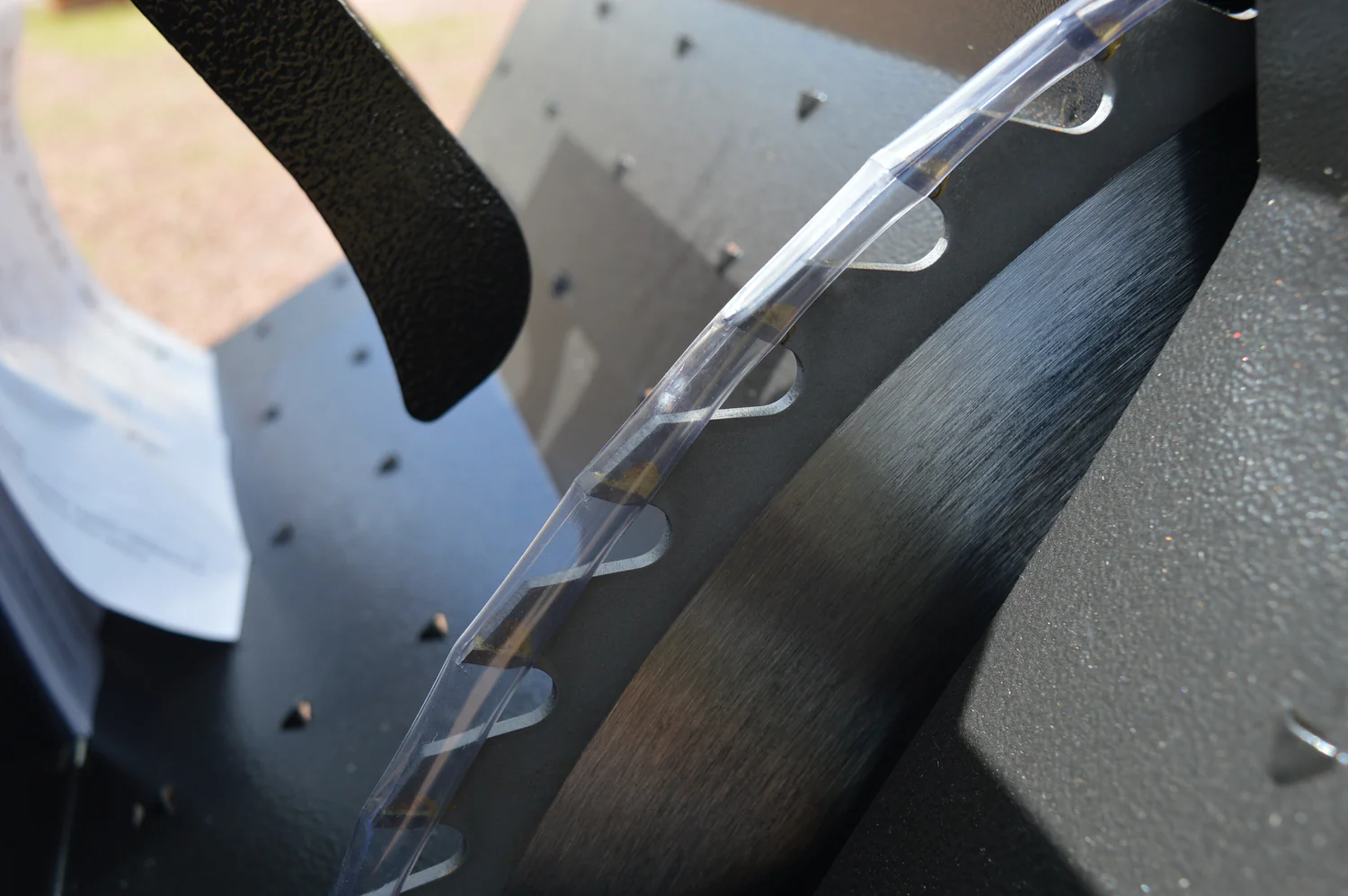

• Massive 700mm Blade: Equipped with a large 70cm (700mm) TCT blade capable of handling a maximum cutting diameter of 230mm, allowing for the processing of substantial timber rounds in a single pass.
• Tractor-Driven Efficiency: Designed for standard 540 RPM PTO input. With an internal drive ratio of 3.3:1, the blade achieves an optimal cutting speed of 1440 RPM, ensuring clean and rapid cuts.

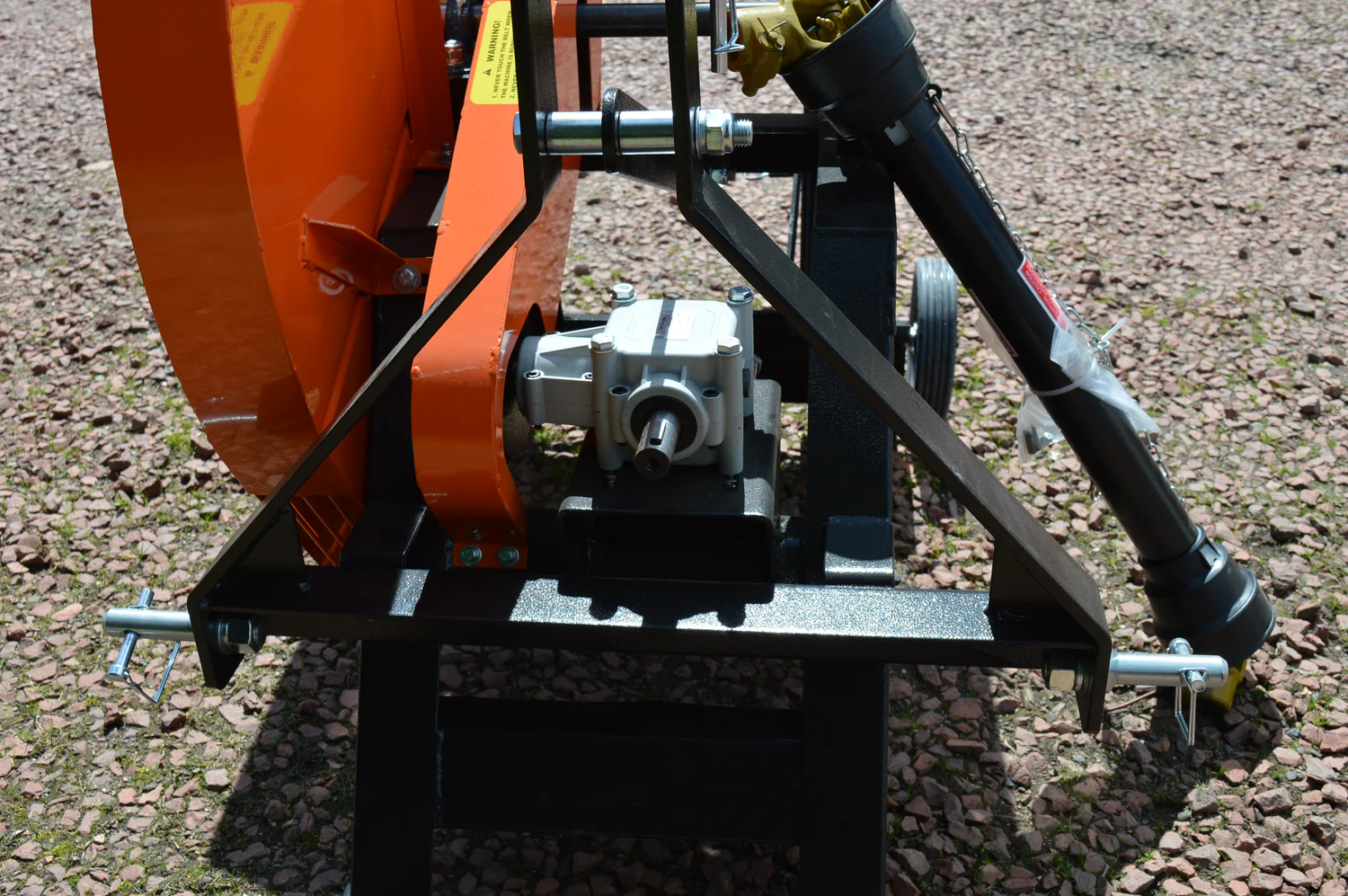

• 3-Point Linkage Mounting: The robust frame is engineered to attach securely to your tractor's rear linkage, providing a stable, mobile cutting station that can be transported directly to the woodpile in the field.

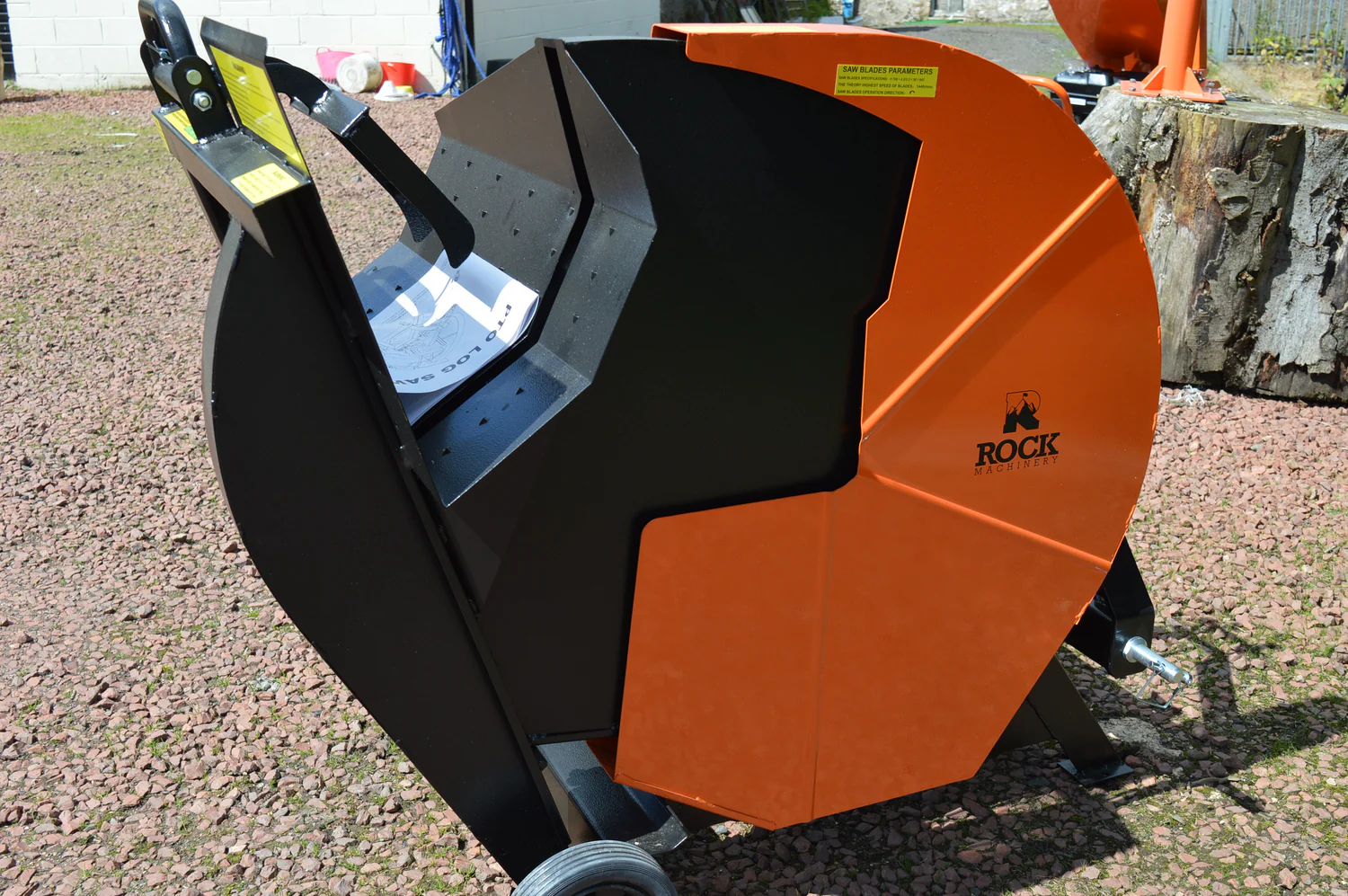

• Enhanced Safety Design: The unit is fully covered and guarded to protect the operator from the spinning blade and flying debris. It features a locking swivel cradle that holds the wood securely in place during the cut, preventing log roll or movement.
• Precision Cutting: Capable of producing log lengths from as short as 100mm up to 1000mm, making it highly versatile for various stove sizes and commercial firewood requirements.
• Rugged Industrial Build: Weighing 120kg, the heavy-duty steel structure is built to withstand the physical rigors of high-volume agricultural use and exposure to the elements.

Engineered for High-Volume Firewood Production

The Rock 700 is a primary asset for anyone with a tractor looking to maximize their firewood output. By using the tractor’s engine, you benefit from consistent power delivery that doesn't stall under load. The swivel cradle design is significantly safer and more ergonomic than traditional circular saws, as it keeps the operator's hands well away from the cutting zone while providing mechanical support for the weight of the log.

Technical Specifications

• Drive Type: PTO (3-Point Linkage)
• PTO Input Speed: 540 r/min
• Drive Ratio: 3.3:1
• Blade Speed: 1440 RPM (Max)
• Blade Size: 700 x 3.2 mm (30mm Center)
• Max Cutting Diameter: 230 mm
• Min Cutting Diameter: 25 mm
• Cutting Length Range: 100 mm to 1000 mm
• Unit Weight: 120 kg

Why Choose the Rock 700 PTO?

For tractor owners, this saw bench offers the most cost-effective and powerful way to process timber. It removes the maintenance requirements of a secondary petrol engine and provides the stability needed for serious wood processing. It is a durable, professional-grade investment for seasonal or year-round wood management.

Turn your tractor into a high-capacity firewood factory with the power and safety of the Rock 700 PTO Saw Bench.
